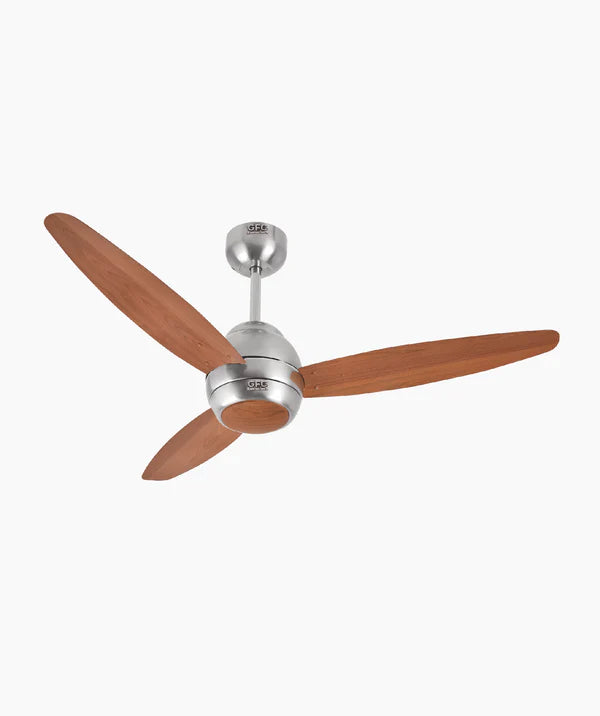

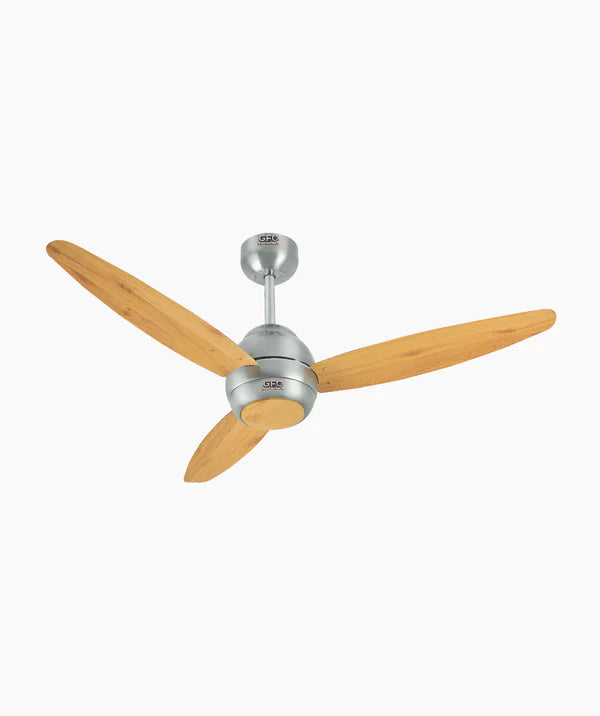

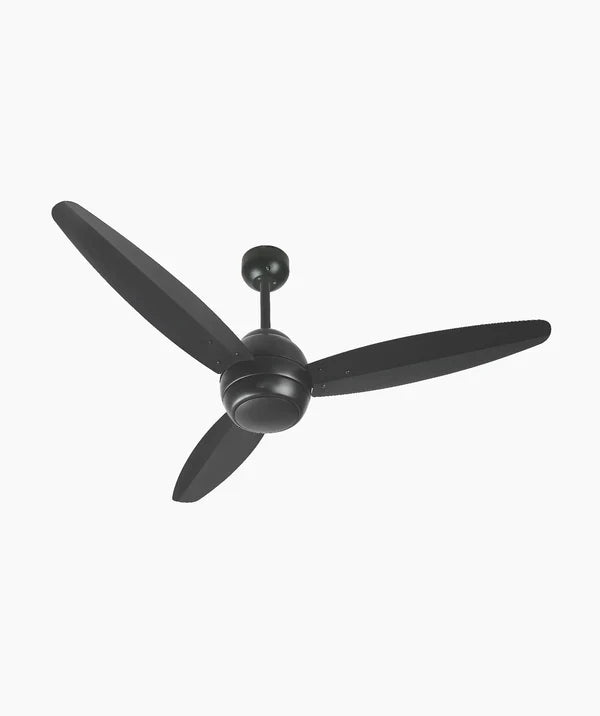

GFC Fans:Ovate Inverter

WARRANTY:

5 Years Circuit And 5 Years Motor.

• Description-
  • Superior quality aluminum alloy construction.
  • Energy efficient Electrical Steel Sheet and 99.9% Pure Copper Wire.
  • “E” grade varnish insulation to protect from electric shock and voltage fluctuation.
  • Aerodynamically designed blades for maximum air delivery.
  • High quality paint for superior finishing.
  • Packed in strong corrugated cartons with protective thermopore.

  General Specifications

  Type	Blades	Sweep	Warranty
  BLDC Inverter	3	1400mm	Yes



  Technical Specifications Inverter

  Mode Type	AC Mode
  Rated Volt	230 Volt AC
  Power Input @(30 WATT)	30 W
  Power Input @(TURBO PLUS)	45 W
  Frequency	50 Hz
  Current in Phase	0.20 A
  Speed @ Full	360 rpm
  Speed @ Slow	150 rpm
  Air Delivery	270 m3/min
  Power  Factor	0.98
  Service Value	5.50 m2/min/W
  Working Voltage Max.	300 V @ 360 rpm
  Working Voltage Min.	120 V @ 360 rpm
  Control of Fan	REMOTE CONTROL
  Remote Type	RF REMOTE
  No. of Speeds	07
  Winding Material	PURE COPPER
  Timer	1H-4H-8H

  What is in the Box-
  • Motor
  • Blades
  • Down Rod
  • Shakle
  • Canopy
  • Screws & Nuts
